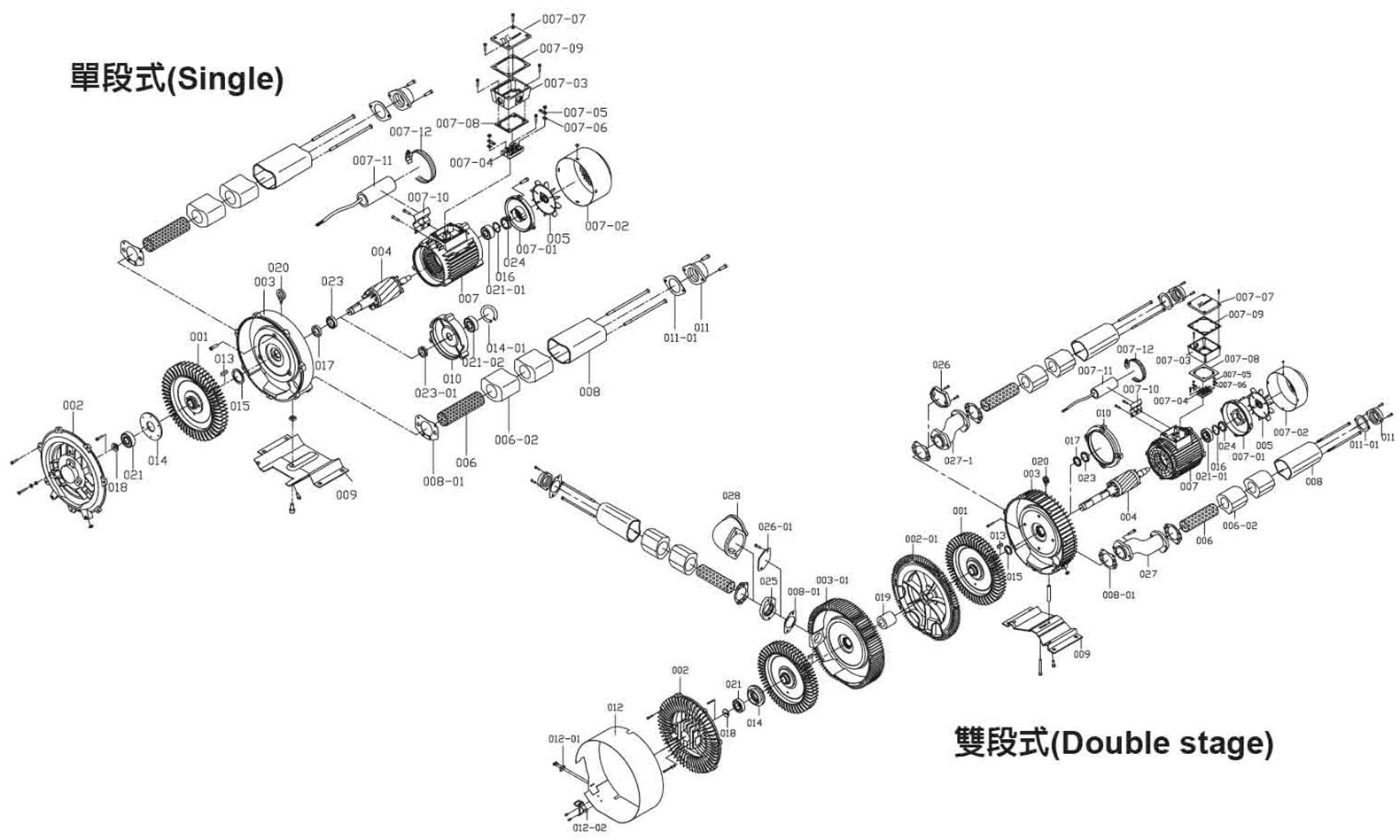

零件分解圖 Parts Illustration |
編號 |
零件名稱 |
編號 |
零件名稱 |
編號 |
零件名稱 |
ITEM |
PARTS NAME |
ITEM |
PARTS NAME |
ITEM |
PARTS NAME |
001 |
風葉 Impeller |
007-08 |
配線盒墊片 Terminal box washer |
015 |
風葉墊片 Washer |
002 |
風蓋 Compressor cover |
007-09 |
配線盒蓋墊片 Terminal cover washer |
016 |
波浪墊片 Ware washer |
002-01 |
中風蓋 Middle compressor cover |
007-10 |
電容器固定片 Capacitor washer |
017 |
羊毛氈 Cotton seal |
003 |
風桶 Compressor housing |
007-11 |
電容器 Capacitor |
018 |
前軸承墊片 Washer |
003-01 |
中風桶 Middle compressor housing |
007-12 |
管束 Steel clip |
020 |
吊環 Bronze ring |
004 |
轉子 Rotor |
008 |
腳管 Silencer housing |
021 |
前軸承 Front bearing |
005 |
散熱葉 Fan |
008-01 |
腳管墊片 Silencer washer |
021-01 |
後軸承 Rear bearing |
006 |
消音鐵網 Silencer mesh pipe |
009 |
腳座 Mounting plate |
021-02 |
前軸承 Front bearing |
006-02 |
消音海綿 Silencer sponge |
010 |
馬達中蓋 Middle motor cover |
023 |
前軸封 Front oil seal |
007 |
馬達 Motor |
011 |
牙口 Inlet/outlet |
023-01 |
軸封 VA-seal |
007-01 |
馬達後蓋 Motor cover |
011-01 |
牙口墊片 Inlet/outlet washer |
024 |
後軸封 Rear oil seal |
007-02 |
散熱鐵蓋 Fan cover |
012 |
外觀鐵片 Protection steel skin |
025 |
腳管固定座 Silencer socket |
007-03 |
配線盒 Terminal box |
012-01 |
上箱扣 Buckle (up) |
026 |
出口封蓋 Outlet cover |
007-04 |
配線端子 Wire socket |
012-02 |
下箱扣 Buckle (down) |
026-01 |
封蓋 Cover |
007-05 |
銅片 Wire connection slice |
013 |
鍵 Rotor pin |
027 |
彎管 Extend pipe |
007-06 |
壓板 Fixed slice |
014 |
前軸承固定片 Bearing washer |
027-1 |
彎管 Extend pipe |
007-07 |
配線盒蓋 Terminal cover |
014-01 |
軸承C型扣環 Bearing washer |
028 |
90°彎管 90°extend pipe |
|
|
|
|
|
|
