VO-20/25 Oil Lubricated Rotary Vane vacuum pump |

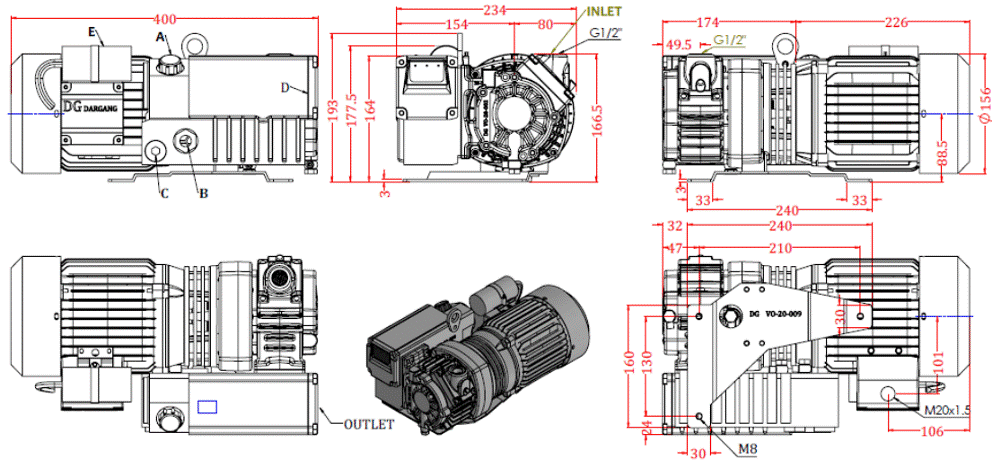

VO-20 / 25尺寸圖 Dimensions |
油潤滑旋片式真空泵,流量從20至26.5 m³/hr,絕對真空2mbar(絕對值)。特別是安裝在小型真空包裝 |
機。法蘭式電機,轉子兩側裝有軸承及空氣冷卻,內置過濾篩網,真空逆止閥和油霧過濾器。法蘭式電機 |
符合DIN EN60034,具有IP54防護和絕緣等級F。 |
Oil lubricated rotary vane vacuum pump with capacities ranging from 20 to 26.5 m³/h and an ultimate vacuum of |
of 2 mbar (abs.). Designed especially for installation in small vacuum packaging machines. Flange motor, bearings |
on both sides of the rotor, air cooling. Fitted as standard with fine mesh filter, vacuum non-return valve and oil |
separator. Flange mounted motors comply with DIN EN 60034, have IP54 protection and insulation class F. |
VO |
20 |
25 |
||||
頻率 Frequency |
Hz |
|
50Hz |
60Hz |
50Hz |
60Hz |
額定電流 Nominal capacity |
m³/ h |
|
20 |
24 |
22.5 |
26.5 |
絕對真空 Ultimate partial pressure |
mbar (abs.) |
|
2 |
|||
電機類型 Motor version |
|
3~ |
50Hz 200 - 240 / 346 - 415 V / 60Hz 220 - 275 / 380 - 480 V |
|||
1~ |
230 V ± 10% |
|||||
電機功率 Motor rating |
kW |
3~ |
0.75 |
0.85 |
0.75 |
0.85 |
1~ |
0.75 |
0.85 |
0.75 |
0.85 |
||
電流 Current |
A |
3~ |
3.70 / 2.14 |
3.90 / 2.25 |
3.70 / 2.14 |
3.90 / 2.25 |
1~ |
5.8 |
6.5 |
5.8 |
6.5 |
||
轉速 Speed |
min-1 |
|
2830 |
3350 |
2830 |
3350 |
平均噪音值 Average noise level |
dB (A) |
|
63 |
64 |
62 |
66 |
最大重量 Maximum weight |
kg |
|
3~21.5 / 1~23 |
|||
油量 Oil capacity |
l |
|
0.35 |
A |
注油口 Oil filling point |
D |
油霧分離器 Oil separator |
B |
油位鏡 Oil check |
E |
電容器 (單相) Capacitor for 1 phase |
C |
排油口 Oil drain point |
|
|
