VO-50/75 Oil Lubricated Rotary Vane vacuum pump |

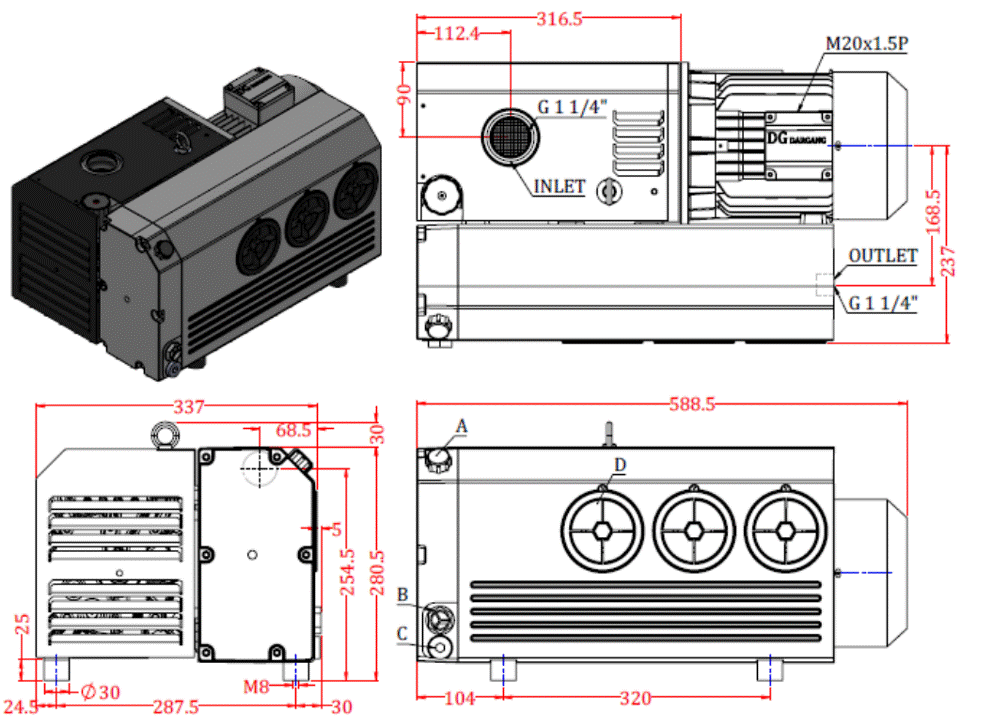

VO-50 / 75尺寸圖 Dimensions |
油潤滑旋片式真空泵,流量從50至84 m³/hr,絕對真空0.1mbar(絕對值)。法蘭式電機,轉子兩側裝有 |
軸承及空氣冷卻,內置過濾篩網,真空逆止閥,氣鎮閥,保護罩和油氣分離器。葉片採用鋁合金材質,壽 |
命長,汽缸兩側採用O型密封環。法蘭式電機符合DIN EN60034,具有IP54防護和絕緣等級F 。 |
Oil lubricated rotary vane vacuum pump with capacities ranging from 50 to 84 m³/h and an ultimate vacuum of |
0.1 mbar (abs.). Flange motor, bearings on both sides of the rotor, air cooling. Fitted as standard with fine mesh |
filter, vacuum non-return valve, gas ballast valve, protection cover and oil separator. Flange mounted motors |
comply with DIN EN 60034, have IP54 protection and insulation class F. |
VO |
50 |
75 |
|||
頻率 Frequency |
Hz |
50Hz |
60Hz |
50Hz |
60Hz |
額定電流 Nominal capacity |
m³/ h |
50 |
60 |
70 |
84 |
絕對真空 Ultimate partial pressure |
mbar (abs.) |
0.1 |
|||
氣鎮閥 Ultimate vacuum (with gas ballast) |
mbar (abs.) |
0.5 |
|||
電機類型 Motor version |
3~ |
50Hz 200 - 240 / 346 - 415 V |
|||
60Hz 220 - 275 / 380 - 480 V |
|||||
電機功率 Motor rating |
kW |
1.25 |
1.5 |
1.85 |
2.2 |
電流 Current |
A |
5.7 / 3.3 |
5.7 / 3.3 |
7.8 / 4.5 |
8.2 / 4.7 |
轉速 Speed |
min-1 |
1440 |
1720 |
1425 |
1720 |
平均噪音值 Average noise level |
dB (A) |
64 |
67 |
64 |
68 |
最大重量 Maximum weight |
kg |
58 |
58 |
58 |
58 |
油量 Oil capacity |
l |
3.0 |
3.0 |
A |
注油口 Oil filling point |
C |
排油口 Oil drain point |
B |
油位鏡 Oil check |
D |
油霧分離器 Oil separator |
