VO-200/300 Oil Lubricated Rotary Vane vacuum pump |
VO-200 / 300尺寸圖 Dimensions |
油潤滑旋片式真空泵,流量從200至360 m³/hr,絕對真空0.1mbar(絕對值)。法蘭式電機,轉子兩側 |
裝有軸承及油/氣熱交換器,內置過濾篩網,真空逆止閥,氣鎮閥,保護罩和油氣分離器。葉片採用鋁 |
合金材質,壽命長,汽缸兩側採用O型密封環。法蘭式電機符合DIN EN60034,具有IP54防護和絕緣等 |
級F。 |
Oil lubricated rotary vane vacuum pump with capacities ranging from 200 to 360 m³/h and an ultimate vacuum of |
0.1 mbar (abs.). Flange motor, bearings on both sides of the rotor, oil/air heat exchanger. Fitted as standard with |
fine mesh filter, vacuum non-return valve, gas ballast valve, protection cover and oil separator. Flange mounted |
motors comply with DIN EN 60034, have IP54 protection and insulation class F. |
VO |
200 |
300 |
|||
頻率 Frequency |
Hz |
50Hz |
60Hz |
50Hz |
60Hz |
額定電流 Nominal capacity |
m³/ h |
200 |
240 |
300 |
360 |

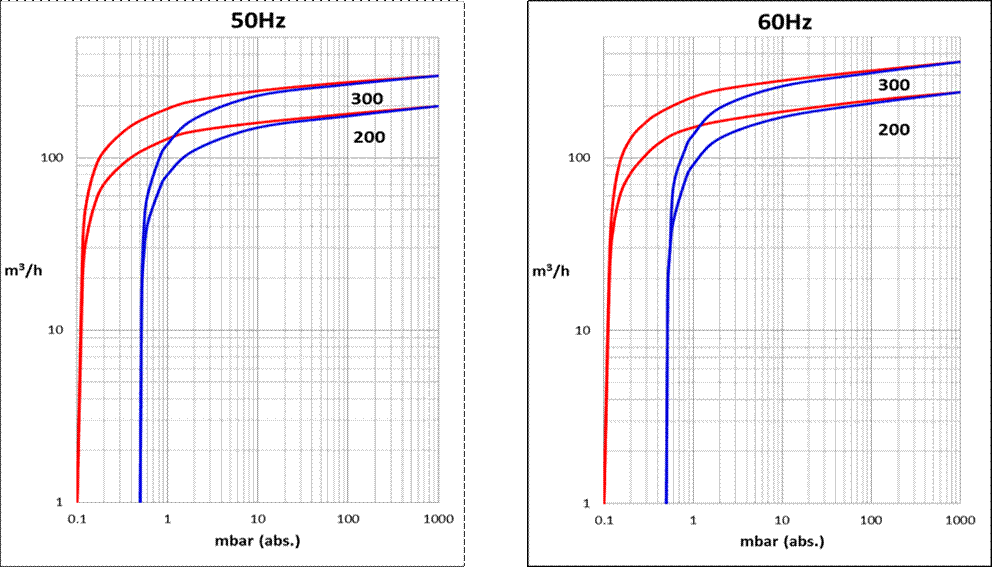

絕對真空 Ultimate partial pressure |
mbar (abs.) |
0.1 |
|||
|
|
0.5 |
|||
電機類型 Motor version |
3~ |
50Hz 200 - 240 / 346 - 415 V |
|||
60Hz 220 - 275 / 380 - 480 V |
|||||
電機功率 Motor rating |
kW |
5.5 |
6.3 |
7.5 |
8.6 |
電流 Current |
A |
20.5 / 11.9 |
21.4 / 12.3 |
28.3 / 16.4 |
29.0 / 16.8 |
轉速 Speed |
min-1 |
1470 |
1760 |
1470 |
1760 |
平均噪音值 Average noise level |
dB (A) |
69 |
73 |
70 |
74 |
最大重量 Maximum weight |
kg |
179 |
179 |
182 |
182 |
油量 Oil capacity |
l |
8 |
8 |
A |
注油口 Oil filling point |
C |
排油口 Oil drain point |
B |
油位鏡 Oil check |
D |
油霧分離器 Oil separator |
