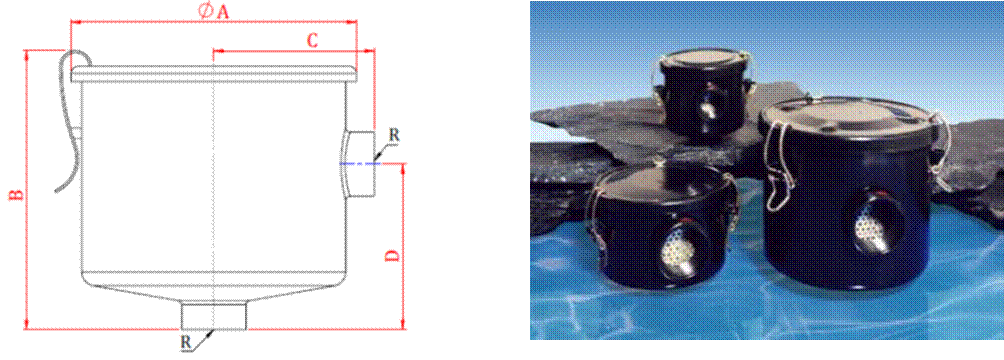

VF入口過濾器 / VF Suction filter |
|
(mm) |
|

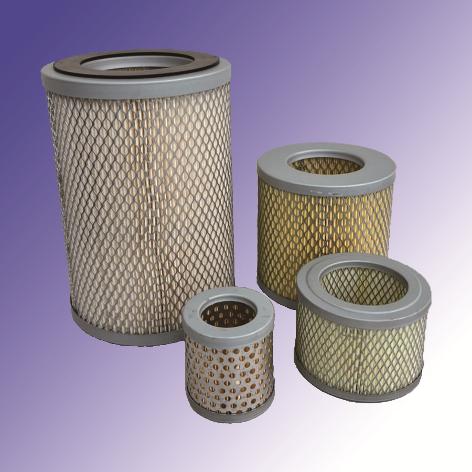

VF入口過濾器濾芯 / VF Suction filter element |
|
型號 / Type |
m3/h |
R |
A |
B |
C |
D |
重量 KG |
材質 (material) / 精度 (accuracy) |
|
VF-06 |
45 |
G 1/2” |
102 |
95 |
57 |
51 |
0.6 |
紙濾心 ( Paper filter ) / 20um |
|
VF-07 |
45 |
G 3/4” |
102 |
95 |
57 |
51 |
0.6 |
紙濾心 ( Paper filter ) / 20um |
|
VF-10 |
100 |
G 1 1/4” |
146 |
116 |
82 |
70 |
1.4 |
紙濾心 ( Paper filter ) / 20um |
|
VF-12 |
200 |
G 1 1/2” |
190 |
195 |
110 |
109 |
2.3 |
紙濾心 ( Paper filter ) / 20um |
|
VF-16 |
360 |
G 2” |
220 |
265 |
118 |
130 |
4.5 |
紙濾心 ( Paper filter ) / 20um |
|
VF-20 |
360 |
G 2 1/2” |
220 |
265 |
118 |
130 |
4.5 |
紙濾心 ( Paper filter ) / 20um |
|

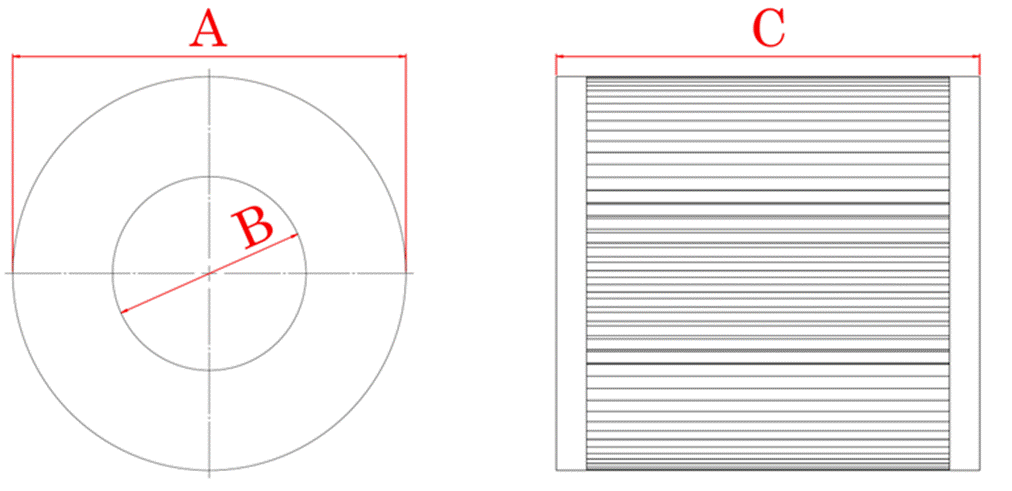

型號 / Type |
A (mm) |
B (mm) |
C (mm) |
材質 (material) / 精度 (accuracy) |
適用 (Application) |
|
VF-06-1 |
63.5 |
39 |
68.5 |
紙濾心 ( Paper filter ) / 20um |
VF-06、07 |
|
VF-10-1 |
97 |
62.5 |
70 |
紙濾心 ( Paper filter ) / 20um |
VF-10 |
|
VF-12-1 |
123.5 |
67.5 |
122 |
紙濾心 ( Paper filter ) / 20um |
VF-12 |
|
VF-16-1 |
149.5 |
90 |
219.5 |
紙濾心 ( Paper filter ) / 20um |
VF-16、20 |
