CB-C Series High Speed Centrifugal Blower |
|
性能表 / Performance |
|
|||||||||
|
搭載高效率永磁同步電機及專用變頻器 / Equipped with high-efficiency permanent magnet synchronous motor and special VFD |
|
|||||||||
|
型號 |
變頻器 |
功率 |
電壓 |
滿載額定電流 |
靜壓 |
最大風量 |
馬達轉速 |
變頻器 |
重量 |
|
|
|
輸入頻率 |
|
|
|
|
|
|
輸出頻率 |
|
|
|
Model |
VFD Input Frequency |
Output |
Voltage |
Current |
Pressure |
Max Airflow |
Motor Speed |
VFD Output Frequency |
Weight |
|
|
|
(Hz) |
(kW) |
(V) |
(A) |
(mbar) |
(m3/h) |
(rpm) |
(Hz) |
(Kg) |
|
|
3 ~ 50/60 Hz, IP54, Insulation material class H. |
|
|||||||||
|
50/60 |
3.0 |
380 |
6 |
120 |
1650 |
12900 |
430 |
40 |
|
|
|
50/60 |
4.0 |
380 |
9 |
160 |
1900 |
15000 |
500 |
41 |
|
|
|
50/60 |
5.5 |
380 |
13 |
200 |
2100 |
16500 |
550 |
43 |
|
|
|
50/60 |
7.5 |
380 |
16 |
250 |
2300 |
18000 |
600 |
44 |
|
|
|
50/60 |
9.0 |
380 |
20 |
280 |
2600 |
19500 |
650 |
44.5 |
|
|
|
50/60 |
11 |
380 |
24 |
140 |
5200 |
14700 |
490 |
58 |
|
|
|
50/60 |
15 |
380 |
30 |
160 |
5600 |
15750 |
525 |
59 |
|
|
|
50/60 |
18.5 |
380 |
36 |
180 |
5900 |
16650 |
555 |
61 |
|
|
|
50/60 |
22 |
380 |
42 |
200 |
6200 |
17550 |
585 |
62 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
外觀尺寸圖 / Dimensions |
|
|||||||||
|

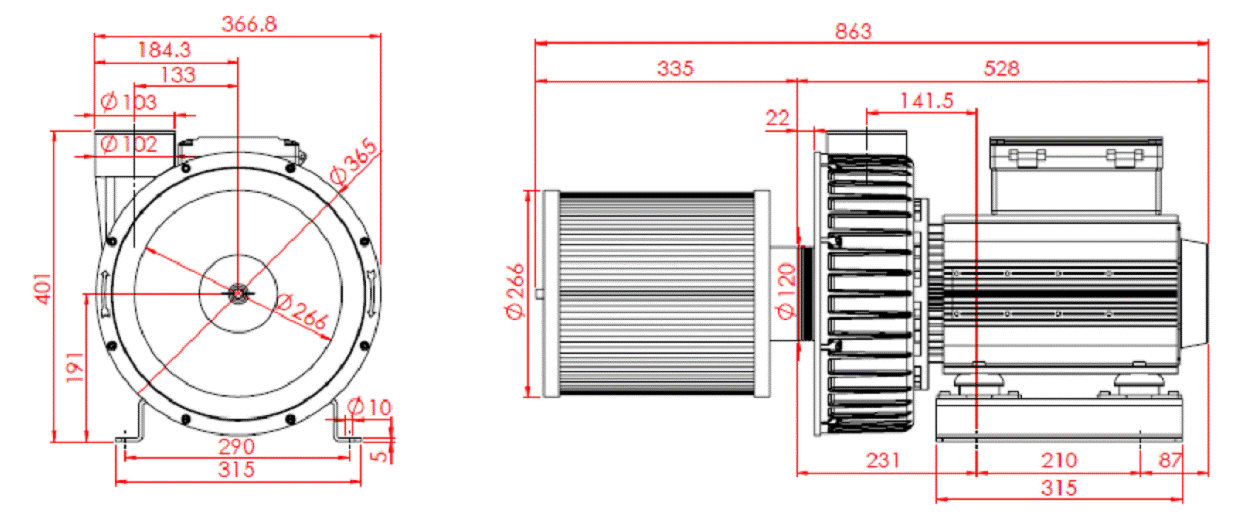

Model: CB-C65~125(3~9kW) |
|
|||||||||
|
|
|
|||||||||
|

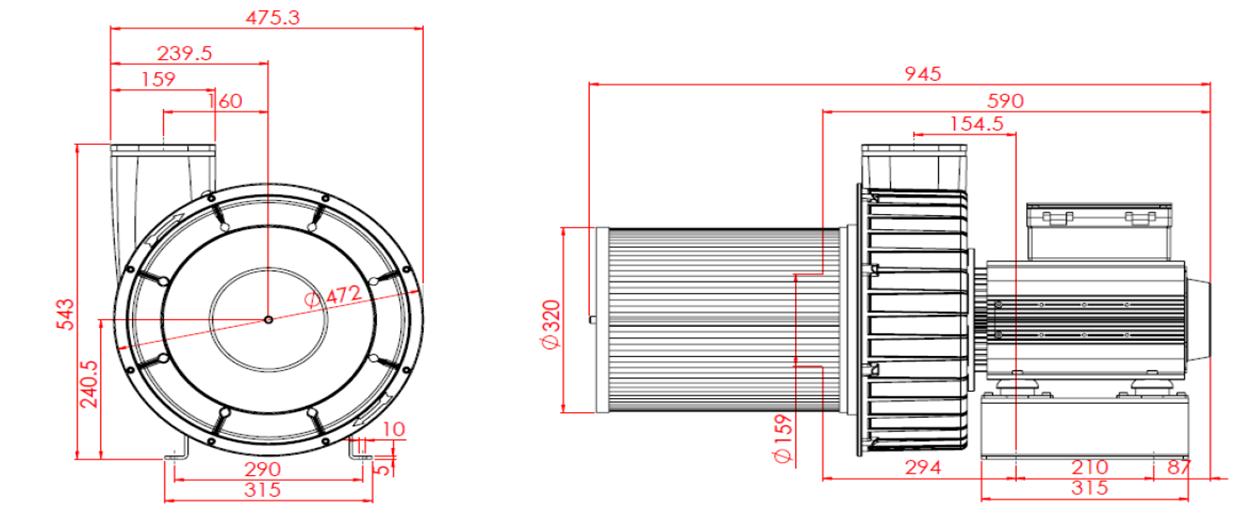

Model: CB-C150~350(11~22kW) |
|
|||||||||
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|

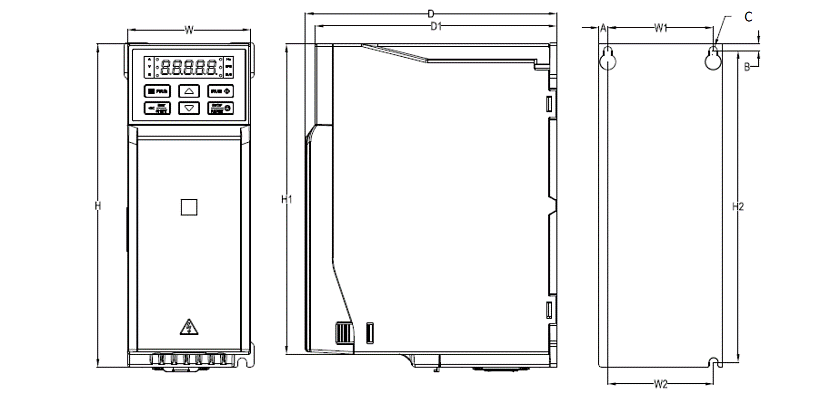

變頻器尺寸圖/ Dimension For Frequency Converter |
|
|||||||||
|
|
|
|||||||||
|
變頻器型號 / VFD Model |
外型尺寸 / Dimensions (mm) |
安裝尺寸 / Installation dimensions (mm) |
孔徑 / Aperture |
重量 Weight (Kg) |
|
||||||||
|
W |
H |
H1 |
D |
D1 |
W1 |
W2 |
H2 |
A |
B |
C |
|||
|
AC320-T3-004H (4.0kW) |
100 |
242 |
231 |
155 |
149 |
84 |
86.5 |
231.5 |
8 |
5.5 |
3-M4 |
2.3 |
|
|
AC320-T3-7R5H (7.5kW) |
116 |
320 |
307.5 |
175 |
169 |
98 |
100 |
307.5 |
9 |
6 |
3-M5 |
4.3 |
|
|
AC320-T3-011H-B (11kW) |
|||||||||||||
|
AC320-T3-015H (15kW) |
142 |
383 |
372 |
225 |
219 |
125 |
100 |
372 |
8.5 |
6 |
4-M5 |
7 |
|
|
AC320-T3-022H (22kW) |
|
||||||||||||
|
|
|
||||||||||||
|
附註／Remark： |
|
||||||||||||
|
1. 上述資料供參考，如有不同以實品為主。 Information above is for reference, product only when different. |
|
||||||||||||
|
2. 本公司保有設計變更之權利，恕不另行通知。We reserve the right to change the design without notice. |
|
||||||||||||
|
3. 如有任何疑問請洽經銷商或本公司。 Should you require any further information or assistance, please do not hesitate to contact us or distributors. |
|
||||||||||||
|
4. 任何電壓均可製作。 Any voltage can be produced . |
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
